Product Description
weBoost Connect 4G-X Cellular Signal Booster Kit
Say hello to reliable cell signal, more consistent data speeds and effortless communication. Connect 4G-X gives you a stronger, more reliable cellular signal to keep you seamlessly connected at home or in the workplace.
You rely on your cellular connection every day to connect with family and friends, to access emails and make important calls. Connect 4G-X can significantly improve your coverage when and where you need it. It will amplify a cellular signal throughout a large area and on all cellular-connected devices, including tablets and laptops. Designed to meet your specific needs, Connect 4G-X features dynamic, self adjusting gain controls that automatically customize the gain level on each frequency band as conditions require.
What Gets Boosted / Amplified?
- Voice Calls = Yes
- 2G / 3G Data = Yes
- 4G Data = Yes

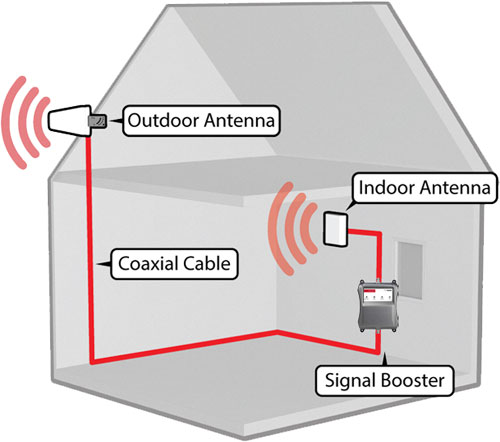

How The Kit Works
The Amplifier receives the signal coming from the cell tower, amplifies it, and then wirelessly transmits the more powerful signal to your cellular device. It also receives the signal coming from your device, amplifies it, and transmits it back to the cell tower. It essentially acts as a 2-way hearing aid when the cellular tower and wireless device are unable to communicate effectively.
Coverage Area
- Intended Use: Designed for signal amplification in a Large Building
- Typical Coverage Range: Depends on initial signal strength , obstructions, composition of walls, placement of equipment, etc. See table below for coverage estimates
- Expandability: Moderate - splitters and additional inside antennas can be added to enlarge the coverage area of this kit, typically 1 - 2 additional antennas
Features and Benefits
- Boost 4G, 3G, talk & text, reduce dropped calls, improve voice quality, extend service range, and increase data rates on all phones with all carriers
- For buildings: home, office, cottage, apartment or SOHO
- Easy to install, complete DIY (do-it-yourself) kit
- Effective in amplifying the signal for multiple cell phones and data cards simultaneously
- There is no physical connection to the phone or data card, so you can move freely during a call or web surfing session
- Extends the life of your cell phone battery - phones vary their power output based on the strength of the signal (the greater the signal, the less power it uses) so a phone being used with a booster will consume less power
Included With This Kit
- Drive Connect 4G-X Signal Booster
- Outside Wide Band Directional Antenna - 314411
- Inside Panel Antenna - 301135
- 75' LMR400 Coax Cable - 952375
- 60' LMR400 Coax Cable - 952360
Customizations
The components used for this bundle are suitable for most typical building installations. However, particular needs do vary and additional equipment might be needed.
- Click here for additional antennas, cables, adapters, etc.
- If you believe that your installation requires additional equipment, equipment other than the bundled components provided with this kit, or are unsure of your requirements, please fill out and submit this questionaire or call us for assistance. (310) 220-2250
Documentation
Installations
-
Wilson Amplifier Systems can be self installed or we can arrange a professional installation for you. Click here for more details.
Specifications
- Frequency Range: Band 12/17 (700 MHz), Band 13 (700 MHz), Band 5 (850 MHz), Band 4 (1700/2100 MHz), Band 25/2 (1900 MHz)
- Max Gain: 70 dB
- Power Req: AC/DC 12 V / 3 A
- Connectors: N-Female
- Impedance: 50 ohms
- Dimensions: 6.5 x 8.75 x 1.63 in
- Weight: 2.6 lbs
- Part# 301135
- Mounting hardware included
- Dual Band Frequency Range: 700-960 MHz / 1710-2500 MHz
- Impedance: 50 ohms
- Polarization: Vertical
-
Gain:
- 5.2 dBi (700-800MHz)
- 4.4 dBi (824-894MHz)
- 4.2 dBi (880-960MHz)
- 10.0 dBi (1710-1880MHz)
- 10.6 dBi (1850-1990MHz)
- 8.2 dBi (2110-2170MHz)
- Max Power: 50 watts
- Beamwidth Hor. Plane: 70°
- Beamwidth Ver. Plane: 50°/45°
- Connector: N-Female
- Dimensions: 8.27 x 7.09 x 1.73 inches / 21 x 18 x 4.39 cm
- Built-in ground plane
- Weight: 1.32 lbs / 0.6 kg
- Inside Antenna Installation Guide
- Part# 314411
- Wide Band Directional Antenna
- Includes Mounting Hardware
- Dual Band Frequency Range: 700MHz - 2500MHz
- Impedance: 50 ohms
-
Gain:
- 7.3 dBi (700-800MHz)
- 8.1 dBi (824-894MHz)
- 7.4 dBi (880-960MHz)
- 9.2 dBi (1710-1880MHz)
- 10.6 dBi (1850-1990MHz)
- 10.4 dBi (2110-2170MHz)
- Max Power: 100 watts
- Beamwidth Hor. Plane: 70° to 90°
- Beamwidth Ver. Plane: 85° to 110°
- Polarization: Vertical
- Connector: N-Female
- Dimensions: 1.42" x 8.27" x 2.56"
- Wieght: 3.31 lbs.
- Built in 18" of cable
- Material: Fiberglass
FCC Mandatory Registration
This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
- You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
- You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
- WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
- Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards.
