Wilson DB Pro 4G Wireless Amplifier Kit
Product Description
Wilson DB Pro 4G Wireless Amplifier Kit
Wilson's DB Pro 4G Amplifier Kit is a simple, easy-to-install solution that improves the cellular reception inside your home. It boosts the signal for voice calls on all North American cellular networks (except Clearwire). It also boosts the signal for 2G, 3G, and 4G data if you're not using WiFi.
What Gets Boosted / Amplified?
- Voice Calls = Yes
- 2G / 3G Data = Yes
- 4G Data = Yes

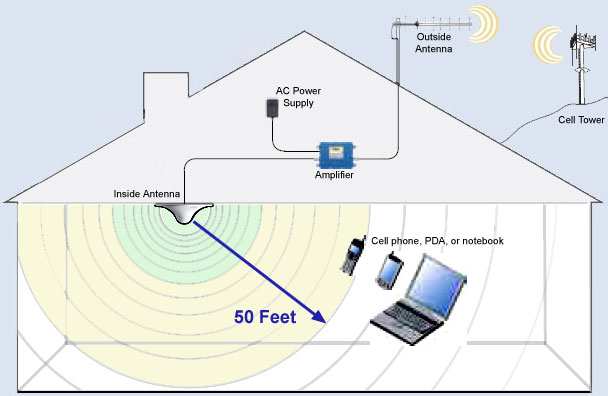

How The Kit Works
The Amplifier receives the signal coming from the cell tower, amplifies it, and then wirelessly transmits the more powerful signal to your cellular device. It also receives the signal coming from your device, amplifies it, and transmits it back to the cell tower. It essentially acts as a 2-way hearing aid when the cellular tower and wireless device are unable to communicate effectively.
Coverage Area
- Designed for signal amplification in a Small Building
- Typical Coverage Range: 50 feet radius from the indoor antenna depending on initial signal strength and other factors
- Expandability: Low - No more than 1 additional inside antenna should be added to enlarge the coverage area of this kit
- Due to the many variables involved in determining coverage area such as signal strength, obstructions, composition of walls, placement of equipment, etc., the proposed coverage of any amplifier kit is an estimate at best
Features and Benefits
- FCC certified to 2014 technical specs
- Wilson Wireless Amplifier kits can significantly reduce dropped calls, improve voice quality, extend service range, and increase data rates
- Effective in amplifying the signal for multiple cell phones and data cards simultaneously
- There is no physical connection to the phone or data card, so you can move freely during a call or web surfing session
- Extends the life of your cell phone battery - phones vary their power output based on the strength of the signal (the greater the signal, the less power it uses) so a phone being used with an Amplifier will consume less power

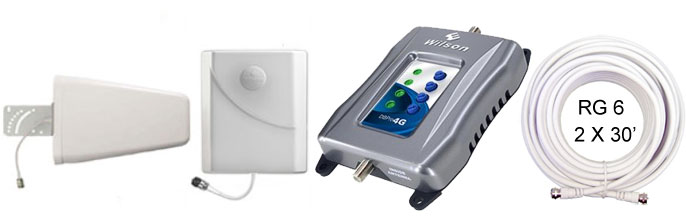

Included With This Kit
- Amplifier - 460003
- Outside Wide Band Directional Antenna - 314475
- Inside Panel Antenna - 301155
- 2 x 30' RG6 Coax Cable - 950630
- AC Power Supply - 859912
Customization
- Additional lengths of cables
- Splitter for multiple Indoor Antennas
- Additional Indoor Antenna
- Lightning Surge Protectors
- Cable Adapters so LMR400 cable can be used
-
Cable Adapters so RG6 or RG11 cable can be used
If you believe that your installation requires additional equipment, equipment other than the bundled components provided with this kit, or are unsure of your requirements, please fill out and submit this questionaire or call us for assistance. (310) 220-2250
Installation Guides
Installations
-
Wilson Amplifier Systems can be self installed or we can arrange a professional installation for you. Click here for more details.
Specifications
- Part# 460003
- Dual Band Frequency Range (824-894 MHz / 1850-1990 MHz)
- Gain: 65 dB
- Maximum 2.5 watts Output Power
- Connectors: F-Female
- Overload Protection Circuit Protects Cell System From Overload
- Automatic Reset If Overload Occurs
- AC Power Supply Included
- Dimensions: 6.5 x 4.25 x 1.75 in / 16.5 x 10.7 x 4.4 cm
- Weight: 1.28 lbs / 0.580 kg
- Part# 301155
- Built-in ground plane
- Mounting hardware included
- Dual Band Frequency Range: 800-960 MHz / 1710-2500 MHz
- Gain: 7 dBi / 10 dBi
- Impedance: 75 ohms
- Connector: F-Female
- Dimensions: 8.27 x 7.09 x 1.73 inches / 21 x 18 x 4.39 cm
- Weight: 1.32 lbs / 0.6 kg
- Part# 314475
- Includes L- Bracket and Bolt Assembly for mounting to side of building or on pole with 1.25 inch to 2 inch diameter
- Dual Band Frequency Range: 806-894 / 1850-1990 MHz
- Impedance: 75 ohms
- Antenna Gain: 5.12 dBi / 6.12 dBi
- Max Power: 25 watts
- Polarization: Vertical
- Connector: F-Female
- Built in 14" of cable
- Material: Fiberglass
- Length: 18 inches / 45.7 cm
FCC Mandatory Registration
This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
- You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
- You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
- WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
- Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards.
