Wilson AG Pro Quint Wireless Amplifier Kit
REPLACED BY 471104
Part # 461104
DISCONTINUED BY MANUFACTURER
Product Description
Replaced by: 471104
Wilson 75 dB "AG Pro Quint " Wireless Amplifier Kit
Wilson's AG Pro Quint Amplifier Kit is a simple, easy-to-install solution that improves the cellular reception inside your home. It boosts the 4G, 3G and 2G voice and data signal for all carriers.
What Gets Boosted / Amplified?
- Voice Calls = Yes
- 2G / 3G Data = Yes
- 4G Data = Yes
How The Kit Works
The Amplifier receives the signal coming from the cell tower, amplifies it, and then wirelessly transmits the more powerful signal to your cellular device. It also receives the signal coming from your device, amplifies it, and transmits it back to the cell tower. It essentially acts as a 2-way hearing aid when the cellular tower and wireless device are unable to communicate effectively.
Coverage Area
- Designed for signal amplification in a Large Building
- Typical Coverage Range: 75 feet radius from the indoor antenna depending on initial signal strength and other factors
- Expandability: High - splitters and additional inside antennas can be added to enlarge the coverage area of this kit
- Due to the many variables involved in determining coverage area such as signal strength, obstructions, composition of walls, placement of equipment, etc., the proposed coverage of any amplifier kit is an estimate at best
Features and Benefits
- FCC certified to 2014 technical specs
- Wilson Wireless Amplifier kits can significantly reduce dropped calls, improve voice quality, extend service range, and increase data rates
- Effective in amplifying the signal for multiple cell phones and data cards simultaneously
- There is no physical connection to the phone or data card, so you can move freely during a call or web surfing session
- Extends the life of your cell phone battery - phones vary their power output based on the strength of the signal (the greater the signal, the less power it uses) so a phone being used with an Amplifier will consume less power
- Previously 843670

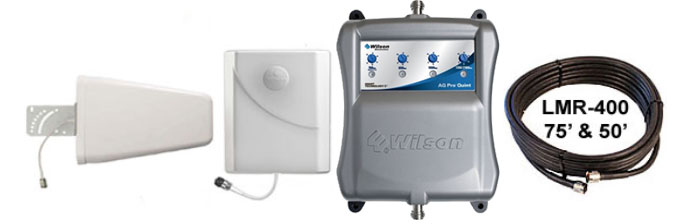

Included With This Kit
- Amplifier - 461004
- Outside Wide Band Directional Antenna - 304411
- Inside Panel Antenna - 301135
- 75' LMR400 Coax Cable - 952375
- 50' LMR400 Coax Cable - 952350
Customizations
The components used for this bundle are suitable for most typical building installations. However, particular needs do vary and additional equipment might be needed such as:
- Longer or additional lengths of cables
- Splitters or Taps for multiple Indoor Antennas
- Additional Indoor Antenna
- Inline Amplifier
- Fitting Adapters
-
Lightning Surge Protectors
If you believe that your installation requires additional equipment, equipment other than the bundled components provided with this kit, or are unsure of your requirements, please fill out and submit this questionaire or call us for assistance. (310) 220-2250
Installation Guides
Installations-
Wilson Amplifier Systems can be self installed or we can arrange a professional installation for you. Click here for more details.
Specifications
Amplifier Specifications
This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
- Part# 461004
- Five Band Frequency Range (698-746 MHz / 776-757 MHz / 824-894 MHz / 1710-2155 MHz / 1850-1990 MHz)
- Gain: 70 dB
- Max Uplink Power 630 mw
- Noise Figure 6-7 dB nominal
- Flatness ±4 dB
- Power Requirements 12V DC
- Connectors: N-Female
- Impedance: 50 ohms
- Dimensions: 4.5 x 6.44 x 1.19 in. / 11.43 x 16.35 x 3.02 cm
- Weight: 2.53 lbs / 1.15 kg
- Part# 301135
- Mounting hardware included
- Dual Band Frequency Range: 700-960 MHz / 1710-2500 MHz
- Impedance: 50 ohms
- Polarization: Vertical
- Gain:
- 5.2 dBi (700-800MHz)
- 4.4 dBi (824-894MHz)
- 4.2 dBi (880-960MHz)
- 10.0 dBi (1710-1880MHz)
- 10.6 dBi (1850-1990MHz)
- 8.2 dBi (2110-2170MHz)
- Max Power: 50 watts
- Beamwidth Hor. Plane: 70°
- Beamwidth Ver. Plane: 50°/45°
- Connector: N-Female
- Dimensions: 8.27 x 7.09 x 1.73 inches / 21 x 18 x 4.39 cm
- Built-in ground plane
- Weight: 1.32 lbs / 0.6 kg
- Inside Antenna Installation Guide
- Part# 304411
- Wide Band Directional Antenna
- Includes Mounting Hardware
- Dual Band Frequency Range: 700MHz - 2500MHz
- Impedance: 50 ohms
- Gain:
- 7.3 dBi (700-800MHz)
- 8.1 dBi (824-894MHz)
- 7.4 dBi (880-960MHz)
- 9.2 dBi (1710-1880MHz)
- 10.6 dBi (1850-1990MHz)
- 10.4 dBi (2110-2170MHz)
- Max Power: 100 watts
- Beamwidth Hor. Plane: 70° to 90°
- Beamwidth Ver. Plane: 85° to 110°
- Polarization: Vertical
- Connector: N-Female
- Dimensions: 1.42" x 8.27" x 2.56"
- Wieght: 3.31 lbs.
- Built in 18" of cable
- Material: Fiberglass
This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
- You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
- You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
- WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
- Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards.
