Wilson AG Pro Quint Selectable Wireless Amplifier Kit

REPLACED BY 843670
Part # 843470
Discontinued by Manufacturer

Product Description

Replaced By: 843670 - More complete 4G coverage at a lower price



Wilson 75 dB "AG Pro Quint Selectable" Wireless Amplifier Kit

Wilson's AG Pro Quint Selectable Amplifier Kit is a simple, easy-to-install solution that improves the cellular reception inside your home.  It boosts the 3G and 2G voice and data signal for all carriers, 4G data for T-Mobile and at the user's option, either the AT&T or Verizon Wireless 4G signal.

How The Kit Works

The Amplifier receives the signal coming from the cell tower, amplifies it, and then wirelessly transmits the more powerful signal to your cellular device.  It also receives the signal coming from your device, amplifies it, and transmits it back to the cell tower.  It essentially acts as a 2-way hearing aid when the cellular tower and wireless device are unable to communicate effectively.

Coverage Area

  • Designed for signal amplification in a Large Building
  • Typical Coverage Range: 75 feet radius from the indoor antenna depending on initial signal strength and other factors
  • Expandability: High - splitters and additional inside antennas can be added to enlarge the coverage area of this kit
  • Due to the many variables involved in determining coverage area such as signal strength, obstructions, composition of walls, placement of equipment, etc., the proposed coverage of any amplifier kit is an estimate at best

Features and Benefits

  • Wilson Wireless Amplifier kits can significantly reduce dropped calls, improve voice quality, extend service range, and increase data rates
  • Effective in amplifying the signal for multiple cell phones and data cards simultaneously
  • There is no physical connection to the phone or data card, so you can move freely during a call or web surfing session
  • Extends the life of your cell phone battery - phones vary their power output based on the strength of the signal (the greater the signal, the less power it uses) so a phone being used with an Amplifier will consume less power

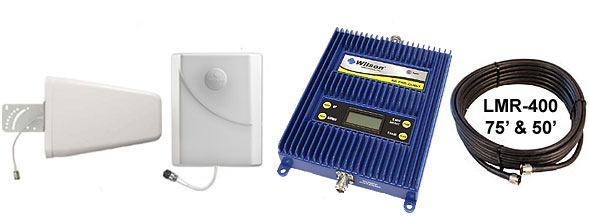

Included With This Kit

  • Amplifier - 803470
  • Outside Wide Band Directional Antenna - 304411
  • Inside Panel Antenna - 301135
  • 75' LMR400 Coax Cable - 952375
  • 50' LMR400 Coax Cable - 952350

Customizations

The components used for this bundle are suitable for most typical building installations. However, particular needs do vary and additional equipment might be needed such as:

Amplifier Specifications

  • Part# 803470
  • Five Band Frequency Range (698-746 MHz / 776-757 MHz / 824-894 MHz / 1710-2155 MHz / 1850-1990 MHz)
  • Gain: 75 dB
  • Max Uplink Power 813 mw
  • Noise Figure 6-7 dB nominal
  • Flatness ±4 dB
  • Power Requirements 12V DC
  • Connectors: N-Female
  • Impedance: 50 ohms
  • Overload protection circuit protects cell towers from being overloaded
  • Oscillation (or interference) detection and automatic shutdown with auto reset
  • Dimensions: 6 x 7.5 x 1.5 (inches) 15.2 x 19 x 3.8 (cm)
  • Weight: 2.81 lbs / 0.175 kg

Inside Panel Antenna Specifications

  • Part# 301135
  • Mounting hardware included
  • Dual Band Frequency Range: 700-960 MHz / 1710-2500 MHz
  • Impedance: 50 ohms
  • Polarization: Vertical
  • Gain:
    • 5.2 dBi (700-800MHz)
    • 4.4 dBi (824-894MHz)
    • 4.2 dBi (880-960MHz)
    • 10.0 dBi (1710-1880MHz)
    • 10.6 dBi (1850-1990MHz)
    • 8.2 dBi (2110-2170MHz)
  • Max Power: 50 watts
  • Beamwidth Hor. Plane: 70°
  • Beamwidth Ver. Plane: 50°/45°
  • Connector: N-Female
  • Dimensions: 8.27 x 7.09 x 1.73 inches / 21 x 18 x 4.39 cm
  • Built-in ground plane
  • Weight: 1.32 lbs / 0.6 kg
  • Inside Antenna Installation Guide

Outside Antenna Specifications

  • Part# 304411
  • Wide Band Directional Antenna
  • Includes Mounting Hardware
  • Dual Band Frequency Range: 700MHz - 2500MHz
  • Impedance: 50 ohms
    • Antenna Gain:
    • 7.3 dBi (700-800MHz)
    • 8.1 dBi (824-894MHz)
    • 7.4 dBi (880-960MHz)
    • 9.2 dBi (1710-1880MHz)
    • 10.6 dBi (1850-1990MHz)
    • 10.4 dBi (2110-2170MHz)
  • Max Power: 100 watts
  • Beamwidth Hor. Plane: 70° to 90°
  • Beamwidth Ver. Plane: 85° to 110°
  • Polarization: Vertical
  • Connector: N-Female
  • Dimensions: 1.42" x 8.27" x 2.56"
  • Wieght: 3.31 lbs.
  • Built in 18" of cable
  • Material: Fiberglass
  • Outside Antenna Installation Guide


Installations

  • Wilson Amplifier Systems can be self installed or we can arrange a professional installation for you.  Click here for more details.
