Wilson 75 dB "AG Pro Installer" Wireless Amplifier Kit
Wilson's AG Pro Installer Amplifier Kit is a simple, easy-to-install solution that improves the cellular reception inside your home. It boosts the signal for voice calls on all North American cellular networks including the 824-894 MHz and 1850-1990 MHz frequency bands. It also boosts the signal for 2G and 3G data communication.
How The Kit Works
The Amplifier receives the signal coming from the cell tower, amplifies it, and then wirelessly transmits the more powerful signal to your cellular device. It also receives the signal coming from your device, amplifies it, and transmits it back to the cell tower. It essentially acts as a 2-way hearing aid when the cellular tower and wireless device are unable to communicate effectively.
Coverage Area
- Designed for signal amplification in a Large Building
- Typical Coverage Range: 75 feet radius from the indoor antenna depending on initial signal strength and other factors
- Expandability: High - splitters and additional inside antennas can be added to enlarge the coverage area of this kit
- Due to the many variables involved in determining coverage area such as signal strength, obstructions, composition of walls, placement of equipment, etc., the proposed coverage of any amplifier kit is an estimate at best
Features and Benefits
- Wilson Wireless Amplifier kits can significantly reduce dropped calls, improve voice quality, extend service range, and increase data rates
- Effective in amplifying the signal for multiple cell phones and data cards simultaneously
- There is no physical connection to the phone or data card, so you can move freely during a call or web surfing session
- Extends the life of your cell phone battery - phones vary their power output based on the strength of the signal (the greater the signal, the less power it uses) so a phone being used with an Amplifier will consume less power
- The adjustable gain controls of the amplifier in this kit allow the installer to set separately the uplink and downlink gain on both the 800 MHz and the 1900 MHz spectrum bands.

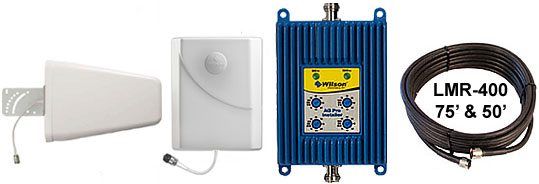

Included With This Kit
- Amplifier - 801285
- Outside Wide Band Directional Antenna - 304411
- Inside Panel Antenna - 301135
- 75' LMR400 Coax Cable - 952375
- 50' LMR400 Coax Cable - 952350
Customizations
- Longer or additional lengths of cables
- Splitters or Taps for multiple Indoor Antennas
- Additional Indoor Antenna
- Inline Amplifier
- Fitting Adapters
-
Lightning Surge Protectors
If you believe that your installation requires additional equipment, equipment other than the bundled components provided with this kit, or are unsure of your requirements, please fill out and submit this questionaire or call us for assistance. (310) 220-2250
Amplifier Specifications
- Part# 801285
- Dual Band Frequency Range (824-894 MHz / 1850-1990 MHz)
- Gain: 70 dB (1850-1990 MHz) / 75dB (824-894 MHz)
- Adjustable Gain: simplifies installation by making antenna placement less critical
- Max Uplink Power 1,200 mw / 1,110 mw
- Max Downlink Power 26 dBm / 25 dBm
- Noise Figure 3.5 dB nominal
- Isolation: >90 dB
- Flatness ±5 dB
- Power Requirements 110-240 V AC, 50-60 Hz, 8 W
- Connectors: N-Female
- Impedance: 50 ohms
- Overload protection circuit protects cell towers from being overloaded
- Oscillation (or interference) detection and automatic shutdown with auto reset
- Dimensions: 5.7 x 4.2 x 1.5 (inches) / 14.0 x 10.8 x 3.9 (cm)
- Weight: 1.27 lbs / 0.54 kg
- Amplifier Installation Guide
Inside Panel Antenna Specifications
- Part# 301135
- Mounting hardware included
- Dual Band Frequency Range: 700-960 MHz / 1710-2500 MHz
- Impedance: 50 ohms
- Polarization: Vertical
-
Gain:
-
5.2 dBi (700-800MHz)
-
4.4 dBi (824-894MHz)
-
4.2 dBi (880-960MHz)
-
10.0 dBi (1710-1880MHz)
-
10.6 dBi (1850-1990MHz)
-
8.2 dBi (2110-2170MHz)
-
- Max Power: 50 watts
- Beamwidth Hor. Plane: 70°
- Beamwidth Ver. Plane: 50°/45°
- Connector: N-Female
- Dimensions: 8.27 x 7.09 x 1.73 inches / 21 x 18 x 4.39 cm
- Built-in ground plane
- Weight: 1.32 lbs / 0.6 kg
- Inside Antenna Installation Guide
Outside Antenna Specifications
- Part# 304411
- Wide Band Directional Antenna
- Includes Mounting Hardware
- Dual Band Frequency Range: 700MHz - 2500MHz
-
Impedance: 50 ohms
- Antenna Gain:
- 7.3 dBi (700-800MHz)
- 8.1 dBi (824-894MHz)
- 7.4 dBi (880-960MHz)
- 9.2 dBi (1710-1880MHz)
- 10.6 dBi (1850-1990MHz)
- 10.4 dBi (2110-2170MHz)
- Max Power: 100 watts
- Beamwidth Hor. Plane: 70° to 90°
- Beamwidth Ver. Plane: 85° to 110°
- Polarization: Vertical
- Connector: N-Female
- Dimensions: 1.42" x 8.27" x 2.56"
- Wieght: 3.31 lbs.
- Built in 18" of cable
- Material: Fiberglass
- Outside Antenna Installation Guide
