Wilson AG SoHo 65 Wireless Amplifier Kit

REPLACED BY 460103
Part # 845045
Discontinued by Manufacturer

Product Description

Replaced by 460103



Wilson 65 dB "AG SoHo 65" Wireless Amplifier Kit

Wilson's AG SoHo 65 Amplifier Kit is a simple, easy-to-install solution that improves the cellular reception inside your home.  It boosts the signal for voice calls on all North American cellular networks including the 824-894 MHz and 1850-1990 MHz frequency bands.  It also boosts the signal for 2G and 3G data if you're not using WiFi.



How The Kit Works

The Amplifier receives the signal coming from the cell tower, amplifies it, and then wirelessly transmits the more powerful signal to your cellular device.  It also receives the signal coming from your device, amplifies it, and transmits it back to the cell tower.  It essentially acts as a 2-way hearing aid when the cellular tower and wireless device are unable to communicate effectively.

Coverage Area

  • Designed for signal amplification in a Small Building
  • Typical Coverage Range: 50 feet radius from the indoor antenna depending on initial signal strength and other factors
  • Expandability: Low - No more than 1 additional inside antenna should be added to enlarge the coverage area of this kit
  • Due to the many variables involved in determining coverage area such as signal strength, obstructions, composition of walls, placement of equipment, etc., the proposed coverage of any amplifier kit is an estimate at best

Features and Benefits

  • Wilson Wireless Amplifier kits can significantly reduce dropped calls, improve voice quality, extend service range, and increase data rates
  • Effective in amplifying the signal for multiple cell phones and data cards simultaneously
  • There is no physical connection to the phone or data card, so you can move freely during a call or web surfing session
  • Extends the life of your cell phone battery - phones vary their power output based on the strength of the signal (the greater the signal, the less power it uses) so a phone being used with an Amplifier will consume less power

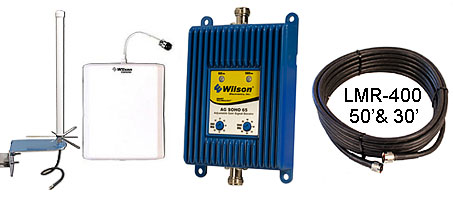

Included With This Kit

  • Amplifier - 805045
  • Outside Dual Band Omni-Directional Antenna - 301202
  • Inside Panel Antenna - 301135
  • 50' LMR400 Coax Cable - 952350
  • 30' LMR400 Coax Cable - 952330

Customization

The components used for this bundle are suitable for most typical building installations. However, particular needs do vary and additional equipment might be needed such as:

Amplifier Specifications

  • Part# 805045
  • Dual Band Frequency Range (824-894 MHz / 1850-1990 MHz)
  • Gain: 62 dB (1850-1990 MHz) / 65 dB (824-894 MHz)
  • Adjustable Gain: simplifies installation by making antenna placement less critical
  • Max Uplink Power 1140 mw / 1114 mw
  • Max Downlink Power 26 dBm / 25 dBm
  • Noise Figure 3 dB / 4 dB nominal
  • Flatness ±5 dB
  • Power Requirements 6 V DC / 3A max
  • Connectors: N-Female
  • Impedence: 50 ohms
  • Overload protection circuit protects cell towers from being overloaded
  • Oscillation (or interference) detection and automatic shutdown with auto reset
  • AC Power Supply Included
  • Dimensions: 5.6 x 3.6 x 1.7 (inches) / 14.2 x 9.1 x 4.4 (cm)
  • Weight: 1.5 lbs / 0.7 kg
  • Amplifier Installation Guide

Inside Panel Antenna Specifications

  • Part# 301135
  • Mounting hardware included
  • Dual Band Frequency Range: 700-960 MHz / 1710-2500 MHz
  • Impedance: 50 ohms
  • Polarization: Vertical
  • Gain:
    • 5.2 dBi (700-800MHz)
    • 4.4 dBi (824-894MHz)
    • 4.2 dBi (880-960MHz)
    • 10.0 dBi (1710-1880MHz)
    • 10.6 dBi (1850-1990MHz)
    • 8.2 dBi (2110-2170MHz)
  • Max Power: 50 watts
  • Beamwidth Hor. Plane: 70°
  • Beamwidth Ver. Plane: 50°/45°
  • Connector: N-Female
  • Dimensions: 8.27 x 7.09 x 1.73 inches / 21 x 18 x 4.39 cm
  • Built-in ground plane
  • Weight: 1.32 lbs / 0.6 kg
  • Inside Antenna Installation Guide

Outside Antenna Specifications

  • Part# 301202
  • Omni-Directional antenna
  • Includes L- Bracket and Bolt Assembly for mounting to side of building or on pole with 1.25 inch to 2 inch diameter
  • Dual Band Frequency Range: 700-894 / 1850-1990 MHz (Cellular, PCS & iDEN Carriers)
  • Impedance: 50 ohms
    • Antenna Gain:
    • 3.2 dBi (700-800MHz)
    • 5.12 dBi (824-894MHz)
    • 2.7 dBi (880-960MHz)
    • 0.6 dBi (1710-1880MHz)
    • 6.12 dBi (1850-1990MHz)
    • -7.5 dBi (2110-2170MHz)
  • Max Power: 25 watts
  • Beamwidth Hor. Plane: 360°
  • Beamwidth Ver. Plane: 60°
  • Polarization: Vertical
  • Connector: FME-Female
  • Length: 18 inches / 45.7 cm
  • Built in 14" of cable
  • Material: Fiberglass
  • Outside Antenna Installation Guide

Installations

  • Wilson Amplifier Systems can be self installed or we can arrange a professional installation for you.  Click here for more details.




Compatibility

All phones and data cards on all major US service providers
