Wilson iBooster Vehicle Amplifier Kit / Charging Cradle

REPLACED BY 815226 and seperate phone charger
Part # 805201
DISCONTINUED BY MANUFACTURER

Product Description

Replaced by 815226 and seperate phone charger



Wilson iBooster Vehicle Charging Cradle / Amplifier Kit

The Wilson iBooster improves both voice and data performance on the road. With 20 times the power to the cell site of a cell phone alone, the iBooster features a built-in antenna, battery charger and works with Cellular (800 MHz) and PCS (1900 MHz) frequencies.


Features and Benefits

  • Reduces dropped calls, extends signal range, and increases data rates
  • Built in amplifier boosts signals to and from cell site
  • Up to 20 TIMES more output power to cell site when in a vehicle
  • Receives weak signals the phone alone may not
  • Built-in battery charger
  • Extends battery life Amplifier enables phone to work at reduced power
  • Pass-thru iPhone connector for accessory access while in cradle
  • Cradle accommodates some iPhone protective cases
  • Simplifies hands free operation

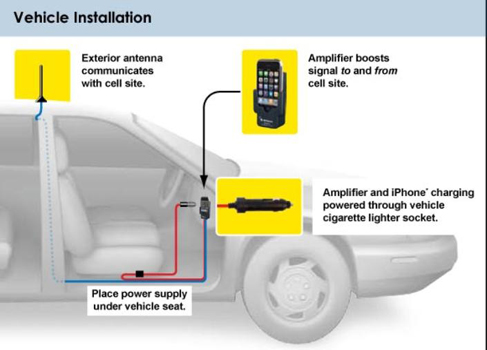

  • Installs in minutes no special tools required
  • Package includes everything needed -- plug-and-play
  • Attractive, compact design

Specifications

  • Frequency 824-894 MHz / 1850-1990 MHz
  • Gain 40 dB / 42 dB
  • Max Output Power 2000 mw
  • Max RF (downlink) -20 dBm
  • Noise Figure 3.5 dB nominal
  • Flatness +-4dB
  • Isolation > 90 dB
  • Power Requirements 12V (Use only with supplied cigarette lighter power supply)
  • Connectors SMA Female
  • Dimensions 2 x 4.75 x 1 (inch) 5.1 x 12.1 x 2.5 (cm)
  • Weight 3 (oz) / 0.09 (kg)

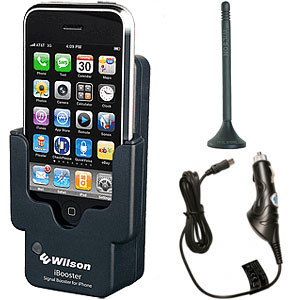

Included Parts

  • All-in-one amplifier, charger and cradle combo
  • Outside vehicular magnet-mount antenna
  • Cigarette lighter power adapter
  • Mounting Clips
  • Installation guide

Recommended Optional Products

Although your phone comes equipped with a speakerphone, it is obstructed when placed in the iBooster cradle. For better performance, we suggest the use of a third party Bluetooth device:

Product Documentation




Compatibility

Apple iPhone, iPhone 3G, iPhone 3GS
