Wilson weBoost Drive Reach Overland Mobile Signal Booster Kit

For Overland and Off-Road Vehicles
by weBoost
Part # 472061
$549.99

Product Description

Wilson weBoost Drive Reach Overland Mobile Signal Booster Kit

The Drive Reach Overland is the newest in-vehicle cell phone signal booster, specially designed for overland and off-road vehicles. The Drive Reach Overland sports a durable, all-weather omni antenna, providing maximum connectivity for when off the beaten path. Overlanding enthusiasts will appreciate the versatile mounting hardware – enabling them to attach the outside antenna in multiple ways. The outside antenna can also be folded down for when a vehicle is stored inside.

The Drive Reach Overland enhances all available network signals up to 32x. Drivers experience fewer lost connections and dead zones, better audio quality, and faster data uploads and downloads with this new signal booster. All components needed for installation come in one package. The Drive Reach Overland works with all cellular devices and all US carriers. Features:

FEATURES

  • Maximizes cell signal for overland and off-road vehicles.
  • Comes with an expertly engineered, versatile mounting bracket that can attach to the vehicle using a T-slot, pole, or fixed mounting.
  • Offers an adjustable outside antenna that can be easily folded down for garage storage.
  • Designed for multiple devices and users.
  • Works on ALL cellular devices and ALL carriers simultaneously.
  • Enhances talk, text, and high-speed data internet while off-roading.

INCLUDED PARTS

  • weBoost Drive Reach 12V Amp
  • Overland Antenna (311248)
  • 13-inch Mast Extension
  • Overland Mount (901168)
  • Inside Antenna (314401)
  • CLA Power Supply (850029)
  • LMR-195 Cable (951114)
  • Coax Cable Side Exit Adapter
  • Antenna Spring
  • Thread Lock Packets

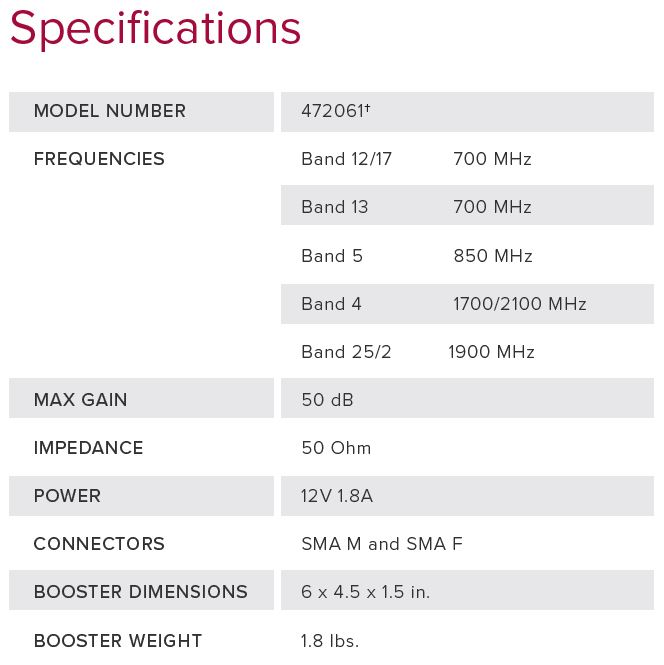

Specifications

  • Band: 12, 13, and 17 - 700 Mhz; Band 5 - 850 Mhz; Band 4 - 1700/2100 Mhz; Band 25/2 - 1900 Mhz
  • Max Gain: 50 dB
  • Impedance: 50 Ohms
  • Power Req: 12V 1.8A
  • Booster Dimensions: 6 x 4.5 x 1.5 in
  • Booster Weight: 1.8 lbs
  • Connectors: SMA M and SMA F

FCC NOTICE:

This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE
with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider. You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person. You MUST cease operating this device immediately if requested by FCC or a licensed wireless service provider.
