Wilson Dual Band Wireless Vehicle Amplifier With Phone Cradle

Part # 801231
DISCONTINUED BY MANUFACTURER

Product Description

Wilson Electronics Dual Band Wireless Vehicle Cell Phone Signal Booster With Phone Cradle

The Wilson SignalBoost Mini Amplifier Kit is a cell phone vehicle amplifier comprised of two internal amplifiers that amplify a cell devices signal to and from cell towers. This Wilson cell phone booster is designed to significantly improve cell phone reception in your vehicle with simple installation.


Amplifier Benefits

  • Significantly improves your cell phone reception
  • Reduces dropped calls and noise

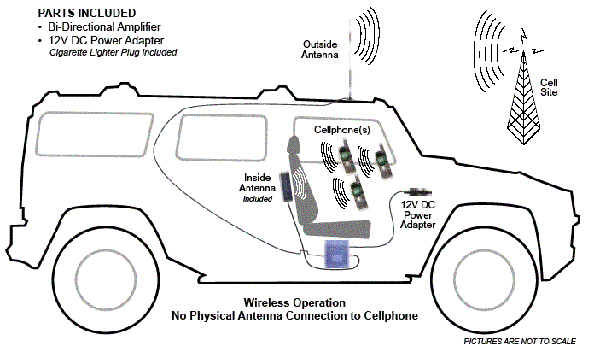

  • The signal coming from the cell tower is received by the outside antenna, amplified, and then sent to the phone cradle/inside antenna
  • The signal coming from your cell phone is received by the inside antenna/cradle, amplified, and then the more powerful signal is transmitted to the cell tower through the outside antenna
  • Allows multiple phones and cellular data cards to be used simultaneously
  • Works with all generations of CDMA, TDMA, GSM and high-speed data technologies

Amplifier Features & Specifications

  • Installs in vehicle in minutes - no special tools required
  • Portable can easily be moved between vehicles
  • Wireless operation no physical connection to cell phone or data card
  • Similar to Wilson801213 except for smaller size and less wattage
  • Microprocessor-controlled circuitry ensures reliable operation within regulatory standards
  • Has a built-in antenna in the phone cradle
  • Frequency: 824-894 MHz / 1850-1990 MHz
  • Gain: 40 dB / 45 dB
  • Maximum 1 watt power output
  • Dimensions: 3.25 x 3.25 x 1 (inch)

Magnet Mount Antenna Specifications

  • Improves your cell phone's reception
  • Magnetic base easily mounts to the roof of your car or any metal surface - this is required for best performance
  • Work for both 800 and 1900 MHZ frequencies
  • FME Female connector
  • Height: 12.25 inches
  • Cable Length: 10 feet
  • Antenna Gain: 5.12 dBi 806-894MHz / 6.12 dBi 1850-1990 MHz

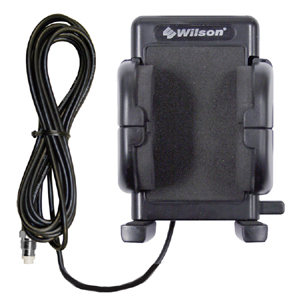

Phone Cradle Specifications

  • Versatile car cradle includes built-in antenna - works with all cell phones (except iDEN/Nextel)
  • Works with Wilson Mobile Wireless or SignalBoost amplifiers (sold separately) to boost your signal up to 10 times
  • Compatible with all cell phones (except iDEN/ Nextel)
  • Increases driver safety
  • Supports any hands-free device, including earbuds and Bluetooth(R) products
  • Adjustable to fit any size cell phone
  • Multiple mounting options: console, dashboard, or windshield
  • Installs in minutes
  • Frequency: 824-960 MHz /1700-2100 MHz
  • Impedence: 50 ohms
  • Connector: FME Female
  • Coax Cable: RG 174 - 7.5 feet
  • Length: 4.125 in / 10.5 cm
  • Width: 2.875 - 4.5 in / 7.3 - 11.4 cm

Included Parts

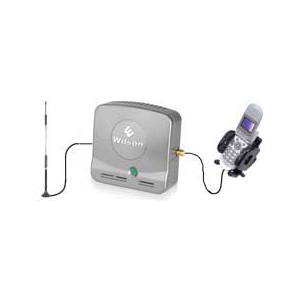

  • SIGNALBOOST Mini-Amp
  • Cradle Plus with a built-in antenna
  • Exterior magnet-mount antenna
  • Mounting brackets
  • Cigarette lighter power supply adapter
  • Earbud
  • Installation guide

Product Documentation


Compatibility

All US cell phones and wireless PC cards (except Nextel) that are 2.875 - 4.5 inches wide
