Wilson DB Pro Wireless Amplifier Kit

Purchasing the correct building amplifier solution for your large home or office just got easier with Wilson's DB Pro Wireless Amplifier Kit. This is Wilson's highest gain dual band in-building amplifier bundled with commonly used lengths of cables and antennas. A convenient way of purchasing all the equipment you will need for more common installations.

Coverage Area

• The Wilson DB Pro Amplifier Kit is designed for use in a large building
• Range: 30 to 60 feet radius depending on signal strength and other factors
• Due to the many variables involved with determining coverage area signal strength, obstructions, composition of walls, placement of equipment, etc. coverage area distance is an estimate at best.

Features and Benefits

• Includes all the components needed for a typical building installation
• Compatible with all Cellular and PCS carriers (except iDEN/Nextel)
• RG-6 (75 ohm) Coax cable for all connections (often found pre-installed) simplifies cable runs
• Wilson Wireless Amplifiers can significantly improve cell phone reception inside of a building
• Wilson Amplifier receives the signal coming from the cell tower, amplifies it, and then transmits the more powerful signal to your cell phone
• It also receives the signal coming from your cell phone, amplifies it, and transmits it back to the tower
• It essentially acts as a 2-way hearing aid when the phone and tower are unable to communicate effectively
• There is no physical connection to the phone so you can walk freely during a call
• Effective with 12 phones simultaneously
• Reduces dropped calls and noise
• Improves voice quality, service range and access
• Extends the life of your cell phone battery - phones vary their power output based on the strength of the signal (the greater the signal, the less power it uses) so a phone being used with an Amplifier will consume less power
• Works great in large homes, offices and buildings
• All of the above benefits apply to data cards as well

Amplifier Specifications

• Dual Band Frequency Range (824-894 MHz / 1850-1990 MHz)
• Gain: 62 dB / 65 dBm
• Maximum 2.5 watts Output Power
• Connectors: F-Female
• Overload Protection Circuit Protects Cell System From Overload
• Automatic Reset If Overload Occurs
• AC Power Supply Included
• Dimensions: 6.2 x 4.2 x 1.5 (inch) / 15.7 x 10.7 x 3.8 (cm)
• Weight: 0.64 lbs / 0.29 kg

Inside Panel Antenna Specifications

• Built-in ground plane
• Mounting hardware included
• Dual Band Frequency Range: 800-960 MHz / 1710-2500 MHz
• Gain: 7 dBi / 10 dBi
• Impedance: 75 ohms
• Connector: F-Female
• Dimensions: 8.27 x 7.09 x 1.73 inches / 21 x 18 x 4.39 cm
• Weight: 1.32 lbs / 0.6 kg

Outside Dual Band Omni-Directional Antenna Specifications

• Omni-Directional antenna
• Includes L- Bracket and Bolt Assembly for mounting to side of building or on pole with 1.25 inch to 2 inch diameter
• Dual Band Frequency Range: 806-894 / 1850-1990 MHz
• Impedance: 75 ohms
• Antenna Gain: 5.12 dBi / 6.12 dBi
• Max Power: 25 watts
• Polarization: Vertical
• Connector: F-Female
• Built in 14" of cable
• Material: Fiberglass
• Length: 18 inches / 45.7 cm

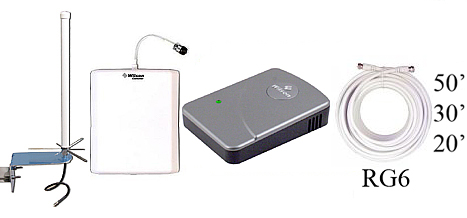

Included With This Kit

• Amplifier - 801262
• Outside Dual Band Omni-Directional Antenna - 301201
• Inside Panel Antenna - 301155
• 50' RG-6 Coax Cable - 950650
• 30' RG-6 Coax Cable - 950630
• 20' RG-6 Coax Cable - 950620

Replacement / Optional Parts

• 2' RG-6 Coax Cable - 950602
• 100' RG-11 Coax Cable - YX031‐100
• Inside Panel Antenna - 301155
• N/Male to F/Female Connector - 971128
• Dual Band Splitter - 859959
• Flat Window Entry Cable 951129 - Allows you to easily pass the signal through a window frame for a quick and easy installation
• Surge Protector - 859988

Product Documentation

• User Guide - (Includes general installation instructions)

Please Note

The components used for this bundle have been determined by Wilson Electronics to be suitable for most large building installations. However, particular needs do vary and additional or different equipment might be needed such as:

• Longer lengths of cables
• Splitters for multiple Indoor Antennas
• Fitting Adapters
  If you believe that your installation requires equipment other than the bundled components provided with this kit or are unsure of your requirements, please fill out and submit this questionaire or call us for assistance. (310) 220-2250

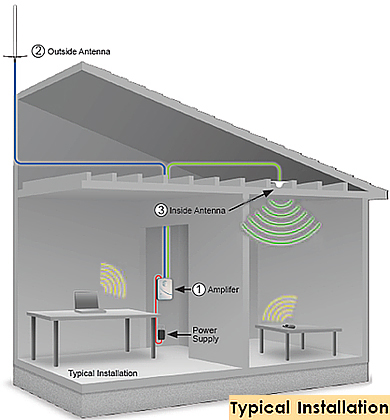

Installations

• No configuration of the amplifier is needed, but you will have to make the connections and mount the outside antenna on the roof of the building. If you believe professional installation is required, please contact us for more details. (310) 220-2250
