Gamber-Johnson Custom Vehicle Pedestal Mount

Contact Us for Quote
Part # GJMOUNT

Product Description

For a custom quote, please contact us with your laptop model and vehicle year, make, and model. Phone: 310-220-2250 / email: sales@cellularforless.com


Gamber-Johnson Custom Vehicle Pedestal Mount

In business since 1954, Gamber-Johnson has proven to be a pioneer in design innovation over the years. As a result, Gamber-Johnson mounts have been the preferred choice of fleet managers for decades and have been installed in thousands of fleets worldwide. These fleets, found in diverse markets include law enforcement, public safety, telecommunications, utility and the military.  Gamber-Johnson customers rely on the rugged vehicle mounting systems and docking stations on a daily basis and associate the Gamber-Johnson name with quality, safety and reliability.

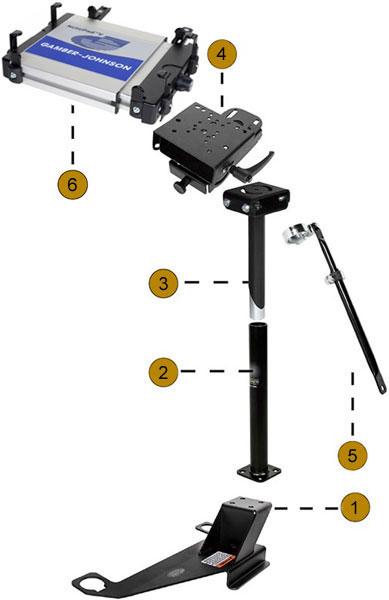

Gamber-Johnson pedestal kits are compatible with a varaity of vehicles.  The sturdy materials used are the same but the components do vary depending on the vehicle.  The diagram below displays all the components of a Gamber-Johnson pedestal kit.

1. Vehicle Base is a no-drill solution and attaches to the passenger side seat studs. Designed using heavy gauge steel for long-term durability.
2. Lower Tube provides vertical clearance over the center console or the seat.
3. Center Upper Pole allows for closer mounting to the dash and less stress on the vehicle mounting equipment as weight is centered on the pole. Wrench is needed for loosening, tightening or height adjustment.
4. Locking Slide Arm can rotate around 360° with locking points every 15°.  Slide Arm can slide up to 5.5” from center pole. Motion Attachment has tilt capabilities up to 90° forward/26° backward and can be swiveled up to 360°.  Motion Attachment works with VESA 75mm, Gamber-Johnson 2x4, NEC or AMPS hole patterns.
5. Support Brace provides additional mount system support in rugged  driving conditions and reduces mounting system vibration.
6. Laptop Cradle has adjustable arms that slide open to accomodate most laptops.





Compatibility

Most Laptops and Vehicles. Please call us to receive your custom quote.
