weBoost eqo 4G Signal Booster Kit

REPLACED BY 470101
by weBoost
Part # 474120
DISCONTINUED

Product Description

weBoost eqo 4G Signal Booster Kit for Home

The eqo is a new type of cell signal booster that allows anyone to bring up to 32 times stronger signal into their home, condo or apartment in seconds. eqo receives a cell signal from the tower, amplifies it, and sends it over coax cable to the antenna. The antenna broadcasts the amplified signal making it available to devices in the home.

What Gets Boosted / Amplified?

  • Voice Calls = Yes
  • 2G / 3G Data = Yes
  • 4G Data = Yes

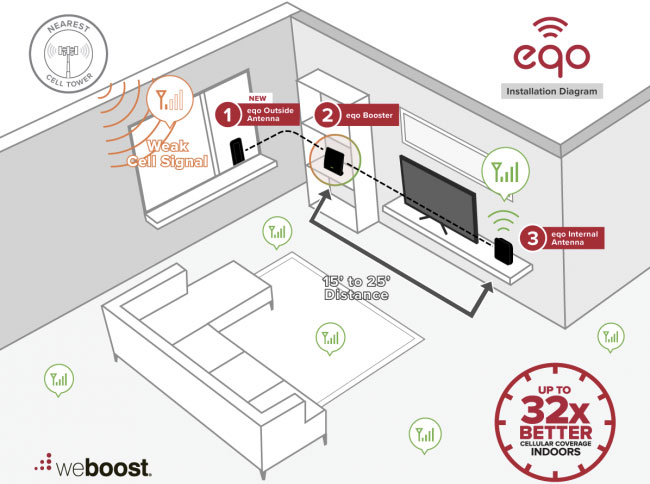

How The Kit Works

The Amplifier receives the signal coming from the cell tower, amplifies it, and then wirelessly transmits the more powerful signal to your cellular device.  It also receives the signal coming from your device, amplifies it, and transmits it back to the cell tower.  It essentially acts as a 2-way hearing aid when the cellular tower and wireless device are unable to communicate effectively.

Coverage Area

  • Intended Use: Designed for signal amplification in a Small Building

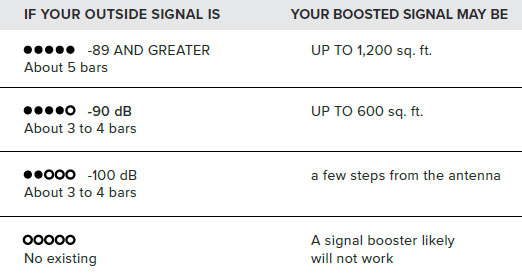

  • Typical Coverage Range: Depends on initial signal strength , obstructions, composition of walls, placement of equipment, etc.  See table below for coverage estimates
  • Expandability: Not expandable

Features and Benefits

  • Boost 4G, 3G, talk & text, reduce dropped calls, improve voice quality, extend service range, and increase data rates on all phones with all carriers
  • For buildings: home, office, cottage, apartment or SOHO
  • 60 seconds to set up, complete DIY (do-it-yourself) kit
  • Effective in amplifying the signal for multiple cell phones and data cards simultaneously
  • There is no physical connection to the phone or data card, so you can move freely during a call or web surfing session
  • Extends the life of your cell phone battery - phones vary their power output based on the strength of the signal (the greater the signal, the less power it uses) so a phone being used with a booster will consume less power
  • Previous part number 473120 (Did not include separate outside antenna)



Specifications

Amplifier Specifications

  • Frequency Range: Band 12/17 (700 MHz), Band 13 (700 MHz), Band 5 (850 MHz), Band 4 (1700/2100 MHz), Band 25/2 (1900 MHz)
  • Max Gain: 70 dB
  • Power: 5V/2.5A
  • Connectors: SMA-Female
  • Impedance: 50 ohms

Included With This Kit

  • EQO All-In-One Multi-band Cell Phone Booster
  • Outside Antenna
  • Inside Antenna
  • Coax Cable (25 ft. RG174, SMA Male)
  • Coax Cable (6 ft. RG174, SMA Male)
  • Power Supply
  • Installation Manual
Documentation FCC Mandatory Registration
This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
  • You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
  • You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
  • WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
  • Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards.
Click here for registration links to the five largest carriers in the country.

Compatibility
