Product Description
zBoost Mobile1 In-Vehicle Cell Phone Cradle Booster
The zBoost Mobile1 cell phone signal booster extends an in-vehicle cell zone (phone must be in the cradle). The dual band booster captures the signal outside of your car and amplifies it on the inside for a stronger signal. The unit boosts 2G and 3G voice and data for all major carriers.

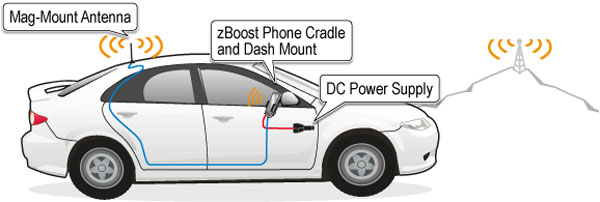

Easy installation - Package includes everything you need: a bi-directional amplifier unit housed in a sturdy, lightweight cradle. The cradle amplifier connects to the dash-mount bracket and also connects to the vehicle’s 12V power through a supplied DC power supply via USB cable. The cradle is ideal for hands free operation in conjunction with a user’s headset or Bluetooth device.
Product Features
- FCC certified to 2014 technical specs
- Significantly improves your cell phone reception for a single user
- Reduces dropped calls and noise
- Works with all major cellular service providers
- Extends cell phone range up to 10 times the signal strength
- Improves signal strength for voice and data
- Extends cell phone battery life
- Extends cell phone range
- Phone stays wireless - no direct wire to phone
- Boosts signal for voice and text for all phones
Package Contents
- zBoost Phone Cradle for hands-free operation
- Adhesive dash-mount bracket with swivel base
- 12V DC Power with USB cable
- External magnetic mount antenna with cable
Product Documentation
Important Notes
- To charge your phone with this device, you will need to use a separate vehicle charger that is specific to your phone (not included). To purchase a cigarette lighter charger, please visit your phone's accessories page.
- For the amplifier to work the phone must stay in the cradle at all times so you will need a wired or wireless headset. Visit your phone's accessory page for a compatible wired headset, or click here for wireless Bluetooth options.
Specifications
- Frequency: 824-894 MHz/1850-1990 MHz
- Output Power: Uplink: 25.2, Downlink: -29.1
- Frequency: 824 to 894 MHz
- Output Power Uplink: 22.9, Downlink: -28
- Connectors: SMA-Female
- Antenna Impedance: 50 Ohms
- Noise Figure: 3 dB nominal
- Power Requirements 5.5 V 1A
- System Certifications: FCC Parts 15 & 20, Industry Canada
FCC Mandatory Registration
This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
- You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
- You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
- WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
- Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards.
