Wilson 4G Desktop Wireless Amplifier Kit
REPLACED BY 470101
Part # 460101
DISCONTINUED BY MANUFACTURER
Related Products
Product Description
Wilson 4G Desktop Wireless Amplifier Kit
Wilson's Desktop Amplifier Kit is a simple, easy-to-install solution that improves the cellular reception inside your home. It boosts the signal for voice and data calls on all North American cellular networks (except Clearwire).

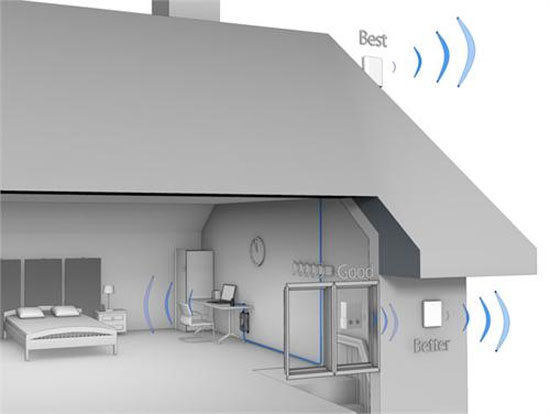

How The Kit Works
The Amplifier receives the signal coming from the cell tower, amplifies it, and then wirelessly transmits the more powerful signal to your cellular device. It also receives the signal coming from your device, amplifies it, and transmits it back to the cell tower. It essentially acts as a 2-way hearing aid when the cellular tower and wireless device are unable to communicate effectively.
Coverage Area
- Designed for signal amplification of a small work space
- Typical Coverage Range: 10 feet radius from the indoor antenna depending on initial signal strength and other factors
- Expandability: Not Expandable
- Due to the many variables involved in determining coverage area such as signal strength, obstructions, composition of walls, placement of equipment, etc., the proposed coverage of any amplifier kit is an estimate at best.
.jpg)
Features and Benefits
- FCC certified to 2014 technical specs
- Wilson Wireless Amplifier kits can significantly reduce dropped calls, improve voice quality, extend service range, and increase data rates
- Effective in amplifying the signal for multiple cell phones and data cards simultaneously
- There is no physical connection to the phone or data card, so you can move freely during a call or web surfing session
- Extends the life of your cell phone battery - phones vary their power output based on the strength of the signal (the greater the signal, the less power it uses) so a phone being used with an Amplifier will consume less power
Package Contents
- DT4G amplifier with adjustable gain
- Outdoor directional panel antenna with 3 mounting options
- Desktop inside antenna
- Two 30-foot coax cables
- All mounting hardware
- AC power supply
- Installation guide
Documentation
Specifications
- Dual Band Frequency Range (Frequency 704-746 MHz, 746-787 MHz, 824-894 MHz, 1850-1995 MHz,
- 1710-1755/2110-2155 MHz)
- Max Gain: 60 dB
- Noise Figure 7 dB nominal
- Power Requirements 110-240 V AC, 50-60 Hz, 8 W
- Connectors: SMA Female (Inside Antenna) / F Female (Outside Antenna)
- Impedance: 50 ohms
- Overload protection circuit protects cell towers from being overloaded
- Oscillation (or interference) detection and automatic shutdown with auto reset
- Dimensions: 6.44" x 4.5" x 1.19"
- Weight: 0.4 lbs
This is a CONSUMER device. BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider’s consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
- You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
- You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
- WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
- Please note, the four largest carriers, namely, AT&T, T-Mobile, Verizon and Sprint, and more than 90 regional carriers have given a blanket consent to all boosters meeting the new certification standards.
