Polycom Nortel IP Audio Conference Phone 2033

by Nortel
Part # NTEX11AA-70E6
DISCONTINUED

Product Description

PLEASE NOTE

  • This is a special order item
  • Click here to view the terms
  • Please allow up to 4 business days for shipment

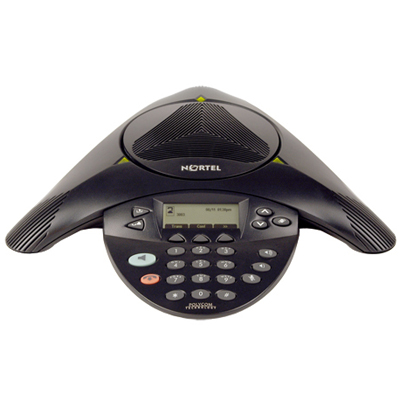

Polycom Nortel IP Audio Conference Phone 2033

The Nortel IP Audio Conference Phone 2033 is a full-duplex, handsfree conference phone that can be desktop mounted and offers 360 degree room coverage for rooms up to 20 ft by 20ft (6.1m by 6.1m). With deployment of optional extension microphones, room coverage expands up to 20ft by 30ft (6.1m by 9.14m) in dimension.

The IP Audio Conference Phone 2003 comes with an integrated 3 line x 24 character backlit, 248x68 pixel-based, fully bitmapped, monochrome FSTN1 Liquid Crystal Display (LCD) which enhances viewing angles from any position within the room. The bitmapped display offers character definition in support of other language sets such as Latin (supported with this first release). The display is also Asian character set ready.

The Nortel IP Audio Conference Phone 2033 comes standard with ten fixed keys including keys for Line, Release, Hold, Mute, Up/Down Volume, Up/Down Navigation and Services and Inbox/Message. Color coded keys (i.e, Line and Release/Goodbye) match those of other Nortel IP Phones aiding ease-of-use.

The IP Audio Conference Phone 2033 integrates three soft keys into its design. This is different than the four that are standard for Nortel IP Phones 2001, 2002 and 2004. To address this difference for users, in cases where the Nortel Communication Server would present user options to all four soft keys they would see if using another Nortel IP Phone, the IP Audio Conference Phone 2033 then leverages the third softkey as a “shift” key – such that users can toggle between softkey options 0 and 1 (presented on the far left and centermost soft keys) and subsequently options 2 and 3 (again presented on the far left and centermost soft keys) to ensure the four options are presented to them. The “More” soft key function, which enables a user to select from another row of soft keys as presented from their respective Nortel Communication Server, is also supported with the IP Audio Conference Phone 2033 and functionality with the feature is exactly the same as with other Nortel IP Phones.



IP Telephony


  IP Address Assignment:   DHCP , Static

  Lines Supported:   Single-line

  Main Features:   Power over Ethernet (PoE) support

  Network Ports Qty:   1 x Ethernet 10Base-T/100Base-TX

  Quality of Service:   Differentiated Services (DiffServ) , IEEE 802.1p , IEEE 802.1Q (VLAN)

  Voice Codecs:   G.711a , G.729a

  VoIP:   Yes


  Telephone Features


  Call Hold:   Yes

  Function Buttons:   Goodbye button , Hold button , Mute button

  Menu Operation:   Yes

  Ringer Control:   Yes

  Speakerphone:   Yes

  Speakerphone Type:   Digital duplex

  Volume Control:   Yes


  Telephone


  Conference Call Capability:   Yes

  Dialer Location:   Base

  Dialer Type:   Keypad

  Type:   Conference VoIP phone


  Display


  Character Qty:   24

  Color Support:   Monochrome

  Display Location:   Base

  Display Resolution:   248 x 68 pixels

  Features:   Backlit

  Line Qty:   3

  Type:   LCD display


  Dimensions & Weight (Base)


  Depth:   12.2 in

  Height:   2.5 in

  Weight:   1.8 lbs

  Width:   14.5 in





Compatibility

Nortel phone systems
