zBoost RF Signal Meter

The zBoost RF Signal Meter detects the best location and alignment for an inside or outside antenna by reading signal strength.  It can identify peak antenna alignment when connected directly to the antenna using the provided coax cable.  It can also identify the signal strength and variation within a building to aid in the placement of an internal antenna.  The LED display can switch between numeric and dBm measurements and between Cellular and PCS bands. The zBoost RF Signal Meter comes with everything you need and no set-up is required, just attach the antenna and turn it on- Instant Signal Reading!

Product Features

• Dual Band: Reads signal strength of either the 800 MHz or 1900 MHz frequencies with a flip of a switch (Does not detect Nextel / iDEN frequencies)
• Detects the optimal location for Outside Antenna placement
• Identifies peak antenna alignment when attached to the outside directional antenna with the supplied coax cable
• Easy to use: Just add batteries and start reading signals
• Switch between the default numeric or dBm display
• Small footprint and lightweight

Technical Specifications

• Frequency (downlink): 869 to 894 MHz, 1930-1990 MHz
• Signal Indicator Display: LED: numeric display 0-99 (default) or dBm display -99dBM to -10dBm
• Connectors: SMA Female
• Batteries: 3 x AA (not included)
• Measurements: 2" x 4" x 1"

Package Contents

• RF Signal Meter base unit
• Whip Antenna
• Coax Cable (for connecting to directional antennas)

Product Documentation

• User Guide

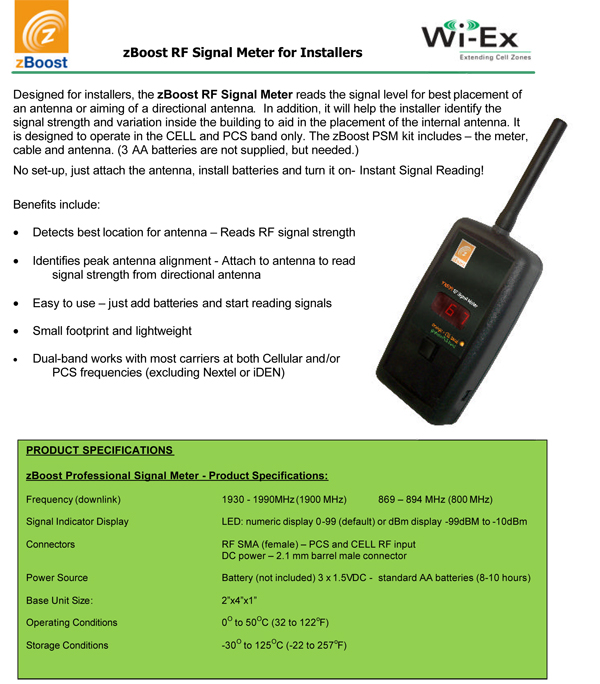

• Data Sheet
