Beam IsatDock PRO Docking Station

by Beam
Part # IN-00-ISDPRO
$1,149.99

Product Description

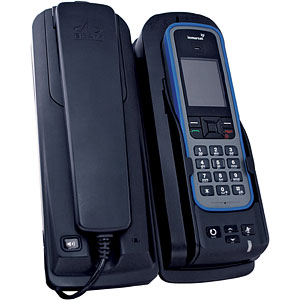

Beam IsatDock PRO Docking Station

Beam IsatDock PRO is an intelligent docking station for the IsatPhone Pro specifically designed to support accessing voice services via Bluetooth, RJ11/POTS, handsfree speaker phone or the active privacy handset attached to the unit.

IsatDock PRO allows the IsatPhone Pro handset to be used in a wide variety of applications. The intelligent RJ11/POTS interface enables cable runs of up to 1,960 feet to connect standard corded, cordless or DECT handsets to be used or alternatively interfaced with a PBX system presenting standard ring, busy and dial tones like a standard phone network.

The IsatPhone Pro handset, fits securely in the dock which is also key lockable, other features include phone charging, USB data port, in-built ringer and allows antenna and power to be permanently connected to the dock ready for use. The IsatPhone Pro handset is easily inserted and removed by the press of a button on the top of the dock making it very easy to use away from the dock when required

Features

  • Charges your IsatPhone Pro
  • Provides a wired connection to a fixed outside antenna, allowing for satellite phone use indoors
  • Built-in speaker/microphone allows use of the phone without removing it from the dock
  • Slimline privacy handset provides private conversations in place of handsfree mode
  • Single action insertion mechanism: phone slides down onto cradle as it snaps back onto the antenna auxiliary plug
  • RJ11 port for connecting the dock to a standard telephone or integrating to PBX system up to 1,960 feet away from dock location
  • USB data port access for connecting to a computer
  • Wall or desk mounting options
  • Key lockable & securable to wall/desk
  • Accessible buttons allow for dock controlled calls
  • Cable management / routing organizes cables behind the dock
  • Status LED with adjustable brightness
  • High quality ABS Plastic

Specifications

  • Dimensions: 10.6" x 7.4" x 4.00"
  • Weight: 3.19"

Included Parts

  • IsatDock Pro
  • Wall Charger
  • Car Charger
  • Privacy Handset
  • Wall Mounting Plate
  • Handset Lock Key
  • User Manual & Quick Start Guide

Documentation

2 Additional Products Required (Contact us for details 310-220-2250):
1) A fixed outdoor antenna must be placed outside with clear line of sight to the sky
2) A Beam Cable Kit must connect the dock to the outside antenna

Compatibility

Inmarsat IsatPhone Pro
