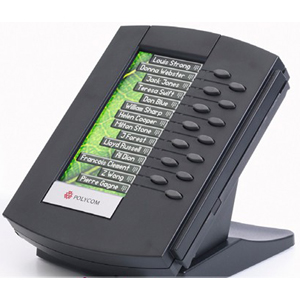

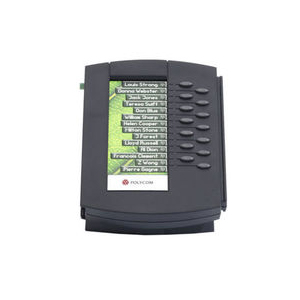

Polycom Color Expansion Module for SoundPoint IP 670 Desk Phone

The SoundPoint IP Color Expansion Module for the SoundPoint IP 670 desktop phone is an optimal solution for telephone attendants – receptionists, administrative assistants, secretaries, and other “power users” who manage and monitor multiple simultaneous telephone calls on a daily basis. The SoundPoint IP Color Expansion Module augments the color user interface of the SoundPoint IP 670 phone with a high-resolution color display and 14 multifunctional line keys that can be set up as a line registration, call appearance, or a speed-dial, direct station select (DSS)/busy lamp field (BLF)1 key. The Color Expansion Module matches elegantly with the look and feel of the SoundPoint IP 670 phone.

Equipped with a high-performance attendant console, which is based on the SoundPoint IP 670 phone and up to three SoundPoint IP Color Expansion Modules, the telephone attendant can reduce the number of lost customer calls, shorten transaction times, and increase the accuracy of call routing by promptly accepting, accurately screening, efficiently dispatching and effortlessly monitoring calls.

The SoundPoint IP Color Expansion Module also provides an easy transition from traditional PBX features and functionality into the world of Voice over IP with its large color display, 14 illuminated multifunctional line keys, and a significantly augmented and pleasing call visualization experience similar to that on the SoundPoint IP 670 phone.

Product Features

• The industry's first color expansion module
• Features a large, vibrant color display for easier viewing, navigation, and call visualization
• With the SoundPoint IP 670, it creates together a high-performance, productivity-enhancing solution for telephone attendants
• Simplifies management and monitoring of a high volume of simultaneous calls
• Delivers business scalability and investment protection by adding up to three modules to the SoundPoint IP 670
• Augments the same visually pleasing, vibrant color user interface of the SoundPoint IP 670
• Matches elegantly with the look and feel of the SoundPoint IP 670
• Easy to deploy - Plug and play since power and signaling are provided by the host phone
• Hot swappable – can be added to or removed from a live SoundPoint IP 670
• 14 illuminated keys configurable as a line appearance or a speed dial with busy lamp field

Specifications

• 160 x 320 pixel color graphical LCD
• 14 multifunctional line keys automatically configurable as a line registration, call appearance, speed dial, DSS, or BLF key
• Dual-color (red or green) illuminated LEDs for line status information
• Activated upon attachment to host SoundPoint IP phone
• Powered by the host phone
• If powering more than one SoundPoint IP Color Expansion Module, an external AC adapter is required

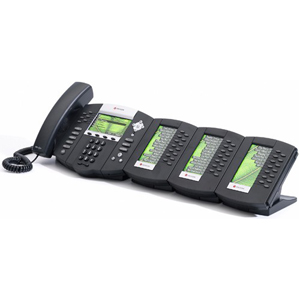

• Up to three SoundPoint IP Color Expansion Modules can be attached to the host SoundPoint IP 670 phone to provide a high-performance attendant console with 48 multifunctional line keys and four high-resolution color displays
• Local feature-rich GUI with animation
• Shared call appearance, bridged line appearance (Key System emulation)
• Multiple call appearances
• Flexible line appearance (requires SIP 3.0.2 RevB or higher)
• Multilingual user interface (driven from the host SoundPoint IP 670 phone)
• Dimensions: 5 in x 5 in x 6.5 in x 2.5 in

Included Parts

• Color Expansion Module Console
• Base stand

Product Documentation

• Data Sheet
• Quick Start Guide
